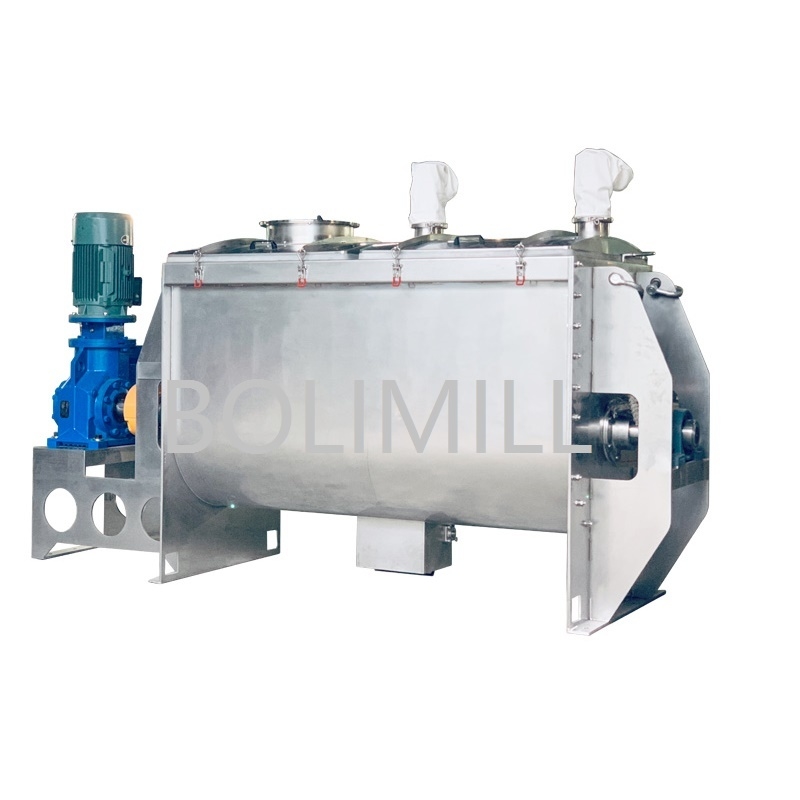

Industrial Ribbon Blender for Powder Mixing 300L Capacity

Büyük resim : Industrial Ribbon Blender for Powder Mixing 300L Capacity

Ürün ayrıntıları:

Place of Origin:	Jiangsu, China
Marka adı:	BOLIMILL
Sertifika:	CE&ISO

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1
Fiyat:	$8,900

İletişim

Detaylı ürün tanımı

Mixer type:	Ribbon	Material processed:	Plastics, Chemicals, Food
Weight:	600 kg	Material:	SUS304, SUS304L, SUS316, SUS316L, SUS304/316
Voltage:	220-480V	Power:	4 kW
Capacity:	300L, 180~2400kg/shift	Motor power:	4-22kw
Speed:	33-65rpm	Model dimensions:	L1:1915mm, W2:850mm, H1:1000mm, H2:50mm
Max loading:	180 kg	Machine weight:	600 kg
Total power:	4 KW	Blade type:	Double or triple layers

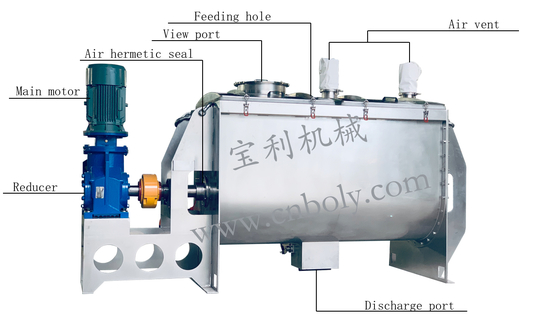

Structural design:	U-shaped container with spiral belt stirring blades
Vurgulamak:	industrial ribbon blender 300L , powder mixing machine with warranty , ribbon blender for industrial use

Industrial Horizontal Baking Powder Premix Mixing Line Ribbon Blender Machine

Product Specifications

Attribute	Value
Mixer Type	Ribbon
Material Processed	Plastics, Chemicals, Food
Weight	600 kg
Construction Material	SUS304, SUS304L, SUS316, SUS316L, SUS304/316
Power	4 kW (220-480V)
Capacity	300L, 180~2400kg/shift
Motor	4-22kW
Speed	33-65rpm
Warranty	1 year
Certifications	CE, ISO, SGS, BV

Product Overview

This industrial ribbon blender is designed for efficient mixing of powders, semi-fluids, and low-viscosity pastes in food, chemical, and agricultural applications. The machine features a U-shaped container with spiral mixing blades for optimal material flow.

Key Features

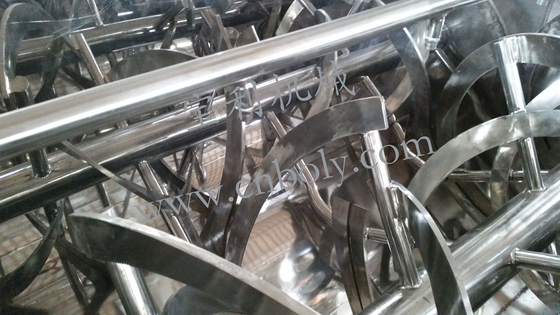

Double or triple-layer spiral blades for efficient material movement
Outer spiral collects material to center, inner spiral distributes to sides
Optional heating/cooling jackets available
Direct reducer connection for simple, reliable operation
Low-power, high-efficiency mixing environment
CE, ISO, SGS, BV certified for quality assurance

Working Principle

The ribbon mixer operates through a U-shaped container with specially designed screw belt stirring blades. The outer spiral collects materials from both sides to the center while the inner spiral conveys materials from the center to both sides, creating continuous mixing action with minimal power consumption.

Technical Specifications

Model	L1 (mm)	W2 (mm)	H1 (mm)	H2 (mm)	Volume (L)	Max Loading (kg)	Speed (RPM)	Weight (kg)	Power (kW)
JB-300	1915	850	1000	50	300	180	65	600	4
JB-500	2510	1000	1275	50	500	300	65	900	7.5
JB-1000	2980	1120	1380	50	1000	600	48	1300	11
JB-1500	3160	1420	1570	50	1500	900	48	1600	15
JB-2000	3360	1450	1625	50	2000	1200	35	2000	15
